Westlock Terminals Grain Cleaner

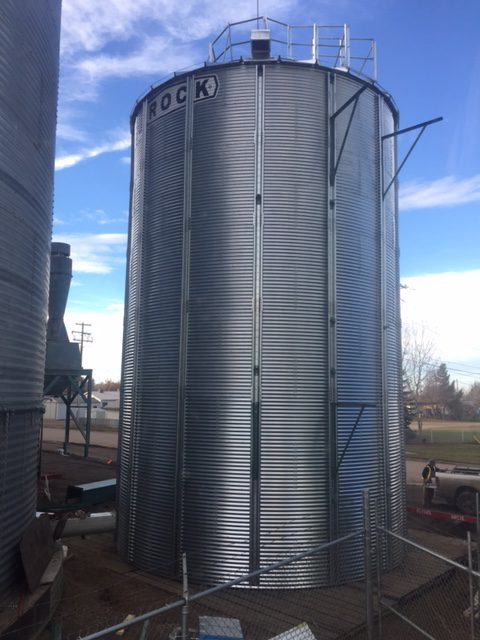

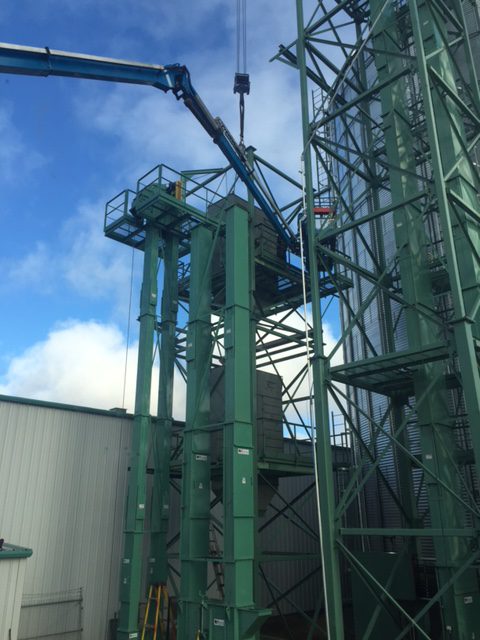

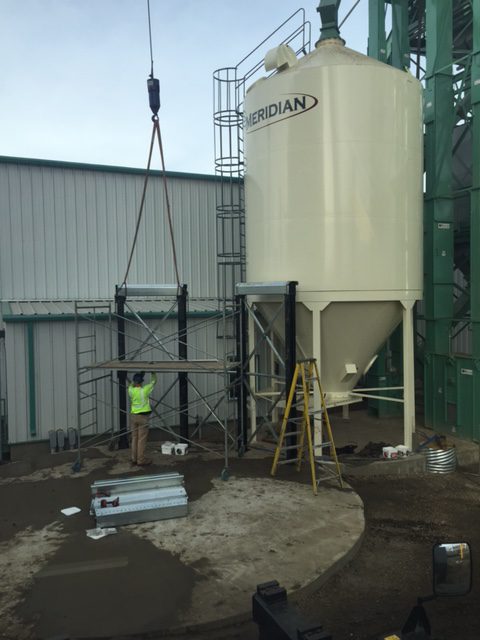

The Westlock terminals facility wanted to add Grain cleaning capabilities which included two gravity cleaners, support tower, and inspection platform, along with 2 grain bins the first being a 21 foot diameter by 60 foot tall Brock E-Series hopper bottom for storing grain prior to cleaning and the second being a 14 foot diameter by 30 foot tall smooth wall Meridian bin for storing the chaff after cleaning.
- Included installation of Multiple Nordstrong Chain conveyors
- Included installation of 2 Nordstrong Bucket elevators
- Included cast in-place concrete foundations for bins, equipment and towers.

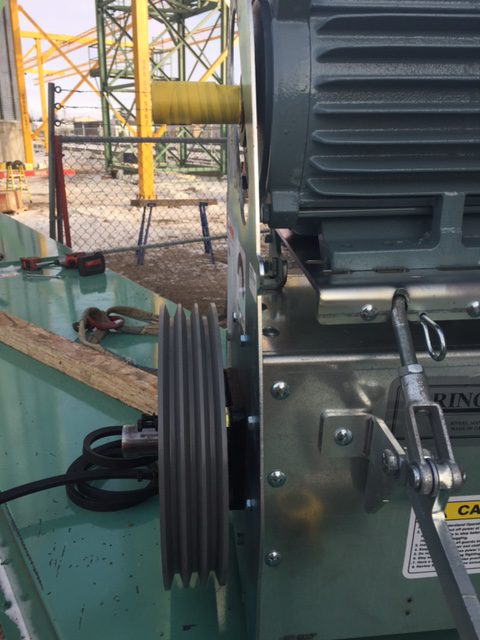

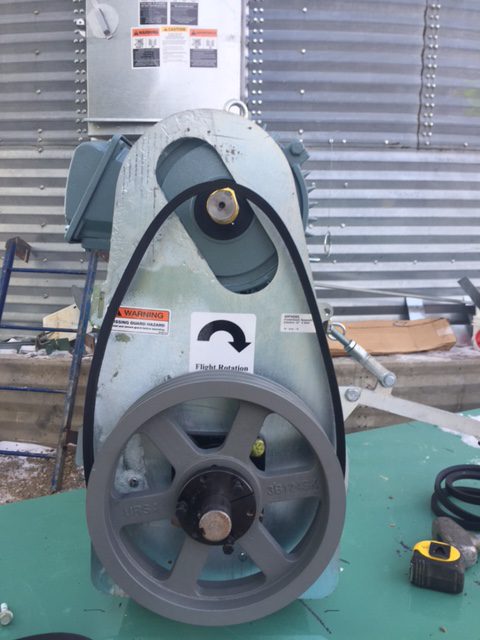

The existing facility had very limited space for the new equipment. The project required modifications to 4 existing bins, including removal of the existing conveyance, filling the existing aeration and unload trenches in bin floors with concrete, then adding raised floors with a new aeration flooring, and installing U-Trough bin sweeps.
- Facility stayed operational during construction.
There were very minimal deficiencies and all were resolved quickly and the systems function as required. The client received their desired outcome at the end of the project.
Completion Date: December, 2016
Westlock Terminals Operations
Roughly 80’ wide by 160’ long
October 28, 2022
PROJECT DELIVERY METHOD
Shop fabrication, Vendor supplied equipment, on site construction and commissioning
Nordstrong Equipment, BJD Electrical, LV Controls, Rock Solid Concrete
